K8s部署jenkins静态节点

1
2
3
4
5
6
7
8

#创建后获取到相关信息

#在命令行中启动节点
java -jar agent.jar -jnlpUrl http://172.16.77.64:8081/computer/k8s%2D01/jenkins-agent.jnlp -secret effca158c86e53a1fcfee124af778966e9701d5cdbae2a3cbd14f7fb96c8d152 -workDir "/home/jenkins"
Run from agent command line, with the secret stored in a file:

echo effca158c86e53a1fcfee124af778966e9701d5cdbae2a3cbd14f7fb96c8d152 > secret-file
java -jar agent.jar -jnlpUrl http://172.16.77.64:8081/computer/k8s%2D01/jenkins-agent.jnlp -secret @secret-file -workDir "/home/jenkins"

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

---
kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: jenkinsagent
  name: jenkinsagent
  namespace: devops
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: jenkinsagent
  template:
    metadata:
      labels:
        k8s-app: jenkinsagent
      namespace: devops
      name: jenkinsagent
    spec:
      containers:
        - name: jenkinsagent
          image: jenkins/inbound-agent
          securityContext:
            privileged: true
          imagePullPolicy: IfNotPresent
          resources:
            limits:
              cpu: 1000m
              memory: 2Gi
            requests:
              cpu: 500m
              memory: 512Mi
          env:
            - name: JENKINS_URL
              value: http://172.16.77.64:8081
            - name: JENKINS_SECRET
              value: effca158c86e53a1fcfee124af778966e9701d5cdbae2a3cbd14f7fb96c8d152
            - name: JENKINS_AGENT_NAME
              value: k8s-01
            - name: JENKINS_AGENT_WORKDIR
              value: /home/jenkins/workspace

1
2

            - name: JENKINS_WEB_SOCKET
              value: true

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

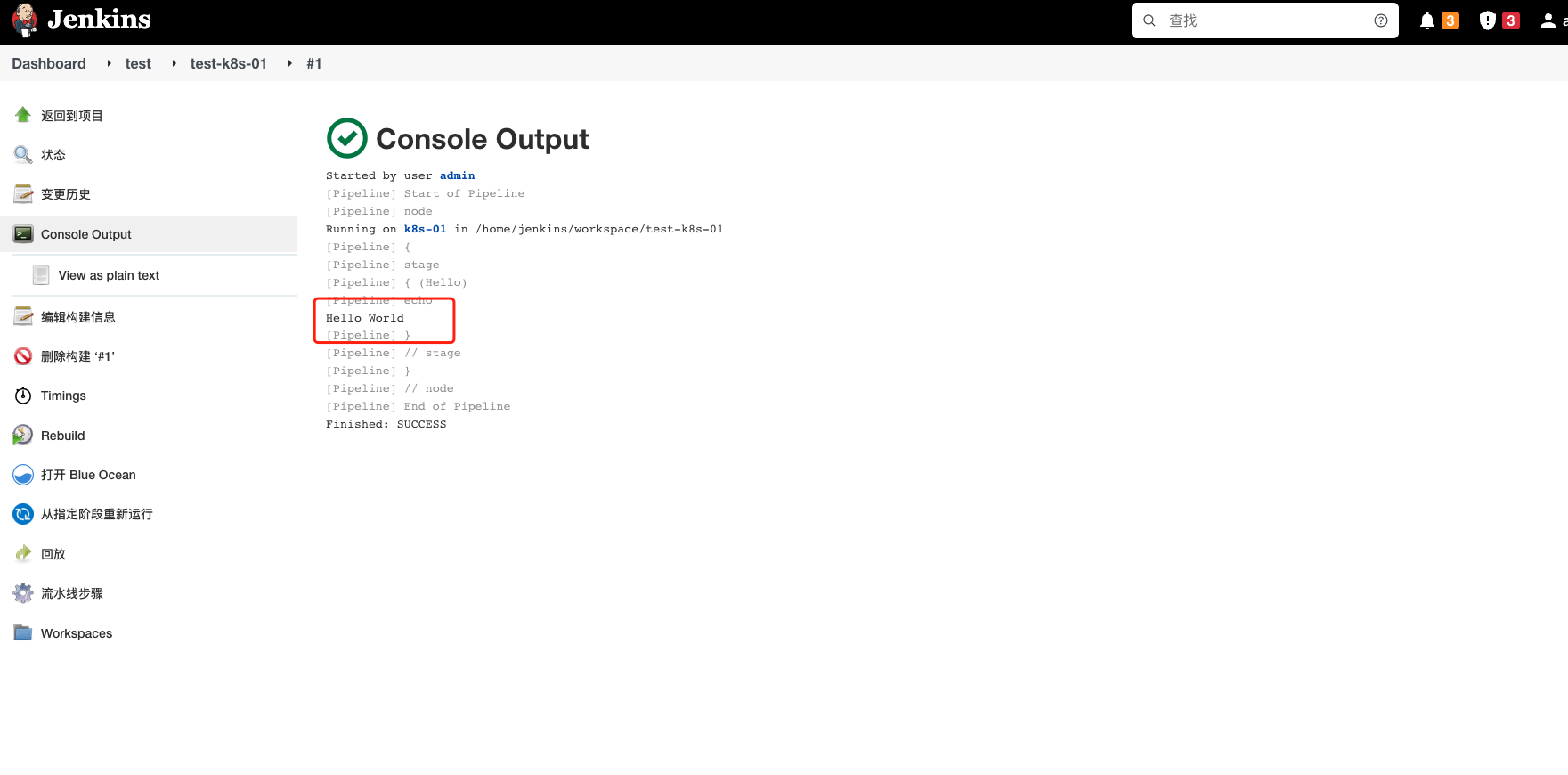

pipeline {
    agent {
        node { label "k8s-01"} //注意，这里是填写的agent的lable，可以和agent名字不一样
    }

    stages {
        stage('Hello') {
            steps {
                echo 'Hello World'
            }
        }
    }
}
